LinA.jl

LinA is a state-of-the-art piecewise linear approximation package which approximates (or over/under-estimates) univariate diffentiable $\mathbb{R} \rightarrow \mathbb{R}$ functions with an optimal (in term of number of segments) piecewise linear function given an error metric. Both absolute and relative errors are implemented. It is also possible to add custom error types. LinA works with expressions as well as with native Julia functions. Details of the algorithms can be found in this paper.

To install LinA, first enter Pkg mode by hitting ], and then run the following command:

pkg> add https://github.com/LICO-labs/LinA.jl

For the full documentation, see the documentation webpage.

To linearize $f(x) = x^2$ from -10 to 10 with a maximum absolute error of $2$ simply do

julia> using LinA

julia> pwl = Linearize(:(x^2),-10,10,Absolute(2))
5-element Vector{LinA.LinearPiece}:
 -16.000000000000004 x -62.00000000000003 from -10.0 to -6.0
 -8.0 x -14.0 from -6.0 to -2.0
 0.0 x + 2.0 from -2.0 to 2.0
 8.0 x -14.0 from 2.0 to 5.999999999999999
 15.999999999999996 x -61.99999999999998 from 5.999999999999999 to 10.0

Note: by default LinA uses the hybrid heuristic algorithm. To use the (slightly slower) exact algorithm simply add ExactLin() as an argument.

You can now call pwl as a julia function such as

julia> pwl(2)
4.470129472588532

But also as an array to get the individual linear segments such as

julia> pwl[2]
-8.0 x -14.0 from -6.0 to -2.0

julia> pwl[2].xMax
-2.0

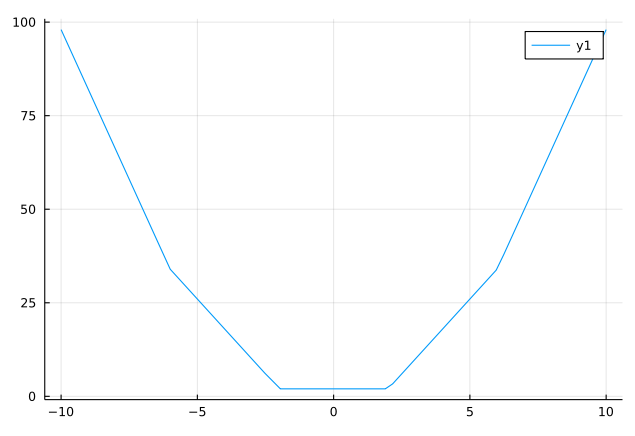

Pwl functions are compatible with Plots.jl. To plot a pwl function simply do

using Plots

plot(x->pwl(x),-10,10)

If you have used our library and wish to cite our work (which we greatly encourage) use the reference of our paper. Starring the LinA.jl repository on GitHub is also appreciated.
