# ILU for SparseMatrixCSC

This package implements the left-looking or Crout version of ILU for the `SparseMatrixCSC` type. It exports the function `ilu`.

## How to install

`IncompleteLU` can be installed through the Julia package manager:

```julia> ]

The package is then available via

`julia> using IncompleteLU`

## When to use this package

Whenever you need an incomplete factorization of a sparse and non-symmetric matrix.

The package also provides means to apply the factorization in-place via `ldiv!`, `forward_substitution!` and `backward_substitution!`. This is useful in the context of left, right or split preconditioning. See the example below.

## Example

Using a drop tolerance of `0.01`, we get a reasonable preconditioner with a bit of fill-in.

```> using IncompleteLU, LinearAlgebra, SparseArrays
> using BenchmarkTools
> A = sprand(1000, 1000, 5 / 1000) + 10I
> fact = @btime ilu(\$A, τ = 0.001)
2.894 ms (90 allocations: 1.18 MiB)
> norm((fact.L + I) * fact.U' - A)
0.05736313452207798
> nnz(fact) / nnz(A)
3.6793806030969844```

Full LU is obtained when the drop tolerance is `0.0`.

```> fact = @btime ilu(\$A, τ = 0.)
209.293 ms (106 allocations: 12.18 MiB)
> norm((fact.L + I) * fact.U' - A)
1.5262736852530086e-13
> nnz(fact) / nnz(A)
69.34213528932355```

## Preconditioner

ILU is typically used as preconditioner for iterative methods. For instance

```using IterativeSolvers, IncompleteLU
using SparseArrays, LinearAlgebra
using BenchmarkTools
using Plots

"""
Benchmarks a non-symmetric n × n × n problem
with and without the ILU preconditioner.
"""
function mytest(n = 64)
N = n^3

A = spdiagm(
-1 => fill(-1.0, n - 1),
0 => fill(3.0, n),
1 => fill(-2.0, n - 1)
)
Id = sparse(1.0I, n, n)
A = kron(A, Id) + kron(Id, A)
A = kron(A, Id) + kron(Id, A)
x = ones(N)
b = A * x

LU = ilu(A, τ = 0.1)
@show nnz(LU) / nnz(A)

# Benchmarks
prec = @benchmark ilu(\$A, τ = 0.1)
@show prec
with = @benchmark bicgstabl(\$A, \$b, 2, Pl = \$LU, max_mv_products = 2000)
@show with
without = @benchmark bicgstabl(\$A, \$b, 2, max_mv_products = 2000)
@show without

# Result
x_with, hist_with = bicgstabl(A, b, 2, Pl = LU, max_mv_products = 2000, log = true)
x_without, hist_without = bicgstabl(A, b, 2, max_mv_products = 2000, log = true)

@show norm(b - A * x_with) / norm(b)
@show norm(b - A * x_without) / norm(b)

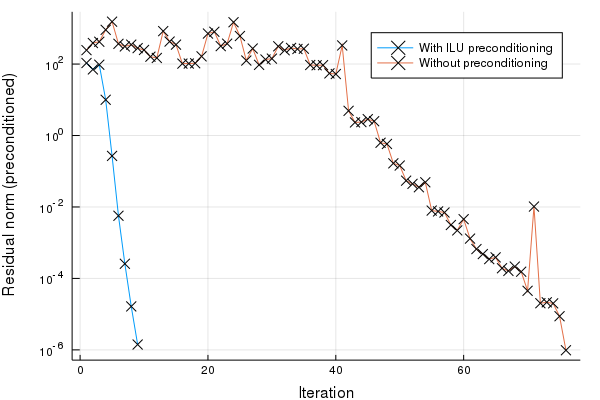

plot(hist_with[:resnorm], yscale = :log10, label = "With ILU preconditioning", xlabel = "Iteration", ylabel = "Residual norm (preconditioned)", mark = :x)
plot!(hist_without[:resnorm], label = "Without preconditioning", mark = :x)
end

mytest()```

Outputs

```nnz(LU) / nnz(A) = 2.1180353639352374
prec = Trial(443.781 ms)
with = Trial(766.141 ms)
without = Trial(2.595 s)
norm(b - A * x_with) / norm(b) = 2.619046427010899e-9
norm(b - A * x_without) / norm(b) = 1.2501603557459283e-8``` ## The algorithm

The basic algorithm loops roughly as follows:

``````for k = 1 : n
row = zeros(n); row[k:n] = A[k,k:n]
col = zeros(n); col[k+1:n] = A[k+1:n,k]

for i = 1 : k - 1 where L[k,i] != 0
row -= L[k,i] * U[i,k:n]
end

for i = 1 : k - 1 where U[i,k] != 0
col -= U[i,k] * L[k+1:n,i]
end

# Apply a dropping rule in row and col

U[k,:] = row
L[:,k] = col / U[k,k]
L[k,k] = 1
end
``````

which means that at each step `k` a complete row and column are computed based on the previous rows and columns:

``````          k
+---+---+---+---+---+---+---+---+
| \ |   | x | x | x | x | x | x |
+---+---+---+---+---+---+---+---+
|   | \ | x | x | x | x | x | x |
+---+---+---+---+---+---+---+---+
|   |   | . | . | . | . | . | . | k
+---+---+---+---+---+---+---+---+
| x | x | . | \ |   |   |   |   |
+---+---+---+---+---+---+---+---+
| x | x | . |   | \ |   |   |   |
+---+---+---+---+---+---+---+---+
| x | x | . |   |   | \ |   |   |
+---+---+---+---+---+---+---+---+
| x | x | . |   |   |   | \ |   |
+---+---+---+---+---+---+---+---+
| x | x | . |   |   |   |   | \ |
+---+---+---+---+---+---+---+---+

col and row are the .'s, updated by the x's.
``````

At step `k` we load (part of) a row and column of the matrix `A`, and subtract the previous rows and columns times a scalar (basically a SpMV product). The problem is that our matrix is column-major, so that loading a row is not cheap. Secondly, it makes sense to store the `L` factor column-wise and the `U` factor row-wise (so that we can append columns and rows without data movement), yet we need access to a row of `L` and a column of `U`.

The latter problem can be worked around without expensive searches. It's basically smart bookkeeping: going from step `k` to `k+1` requires updating indices to the next nonzero of each row of `U` after column `k`. If you now store for each column of `U` a list of nonzero indices, this is the moment you can update it. Similarly for the `L` factor.

The matrix `A` can be read row by row as well with the same trick.

## Accumulating a new sparse row or column

Throughout the steps two temporary row and column accumulators are used to store the linear combinations of previous sparse rows and columns. There are two implementations of this accumulator: the `SparseVectorAccumulator` performs insertion in `O(1)`, but stores the indices unordered; therefore a sort is required when appending to the `SparseMatrixCSC`. The `InsertableSparseVector` performs insertion sort, which can be slow, but turns out to be fast in practice. The latter is a result of insertion itself being an `O(1)` operation due to a linked list structure, and the fact that sorted vectors are added, so that the linear scan does not have to restart at each insertion.

The advantage of `SparseVectorAccumulator` over `InsertableSparseVector` is that the former postpones sorting until after dropping, while `InsertableSparseVector` also performs insertion sort on dropped values.

## Todo

The method does not implement scaling techniques, so the `τ` parameter is really an absolute dropping tolerance parameter.
