A game and 3D graphics framework for Julia, using OpenGL 4.6 + bindless textures. Offers game math, wrappers for OpenGL/GLFW/Dear ImGUI, scene graph algorithms, and numerous other modules.

Add it to your project with ] add Bplus or using Pkg; Pkg.add("Bplus").

A number of example projects are provided in the BpExamples repo:

Here is an open-source game project that heavily uses the ECS system:

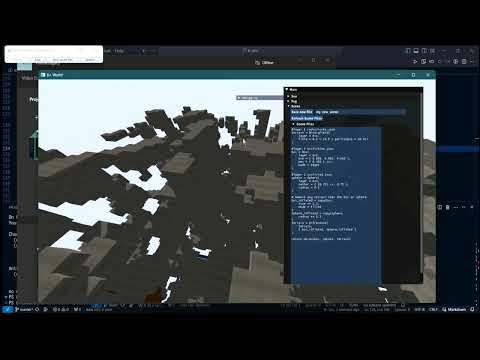

An ongoing voxel toy project of mine:

If you're wondering why Julia, read about it here!

To import everything B+ has to offer, just do using Bplus; @using_bplus. All documented modules are available directly inside (e.x. Bplus.Math), but under the hood this library is segmented into several smaller packages:

• BplusCore contains utilities and game math.
• BplusApp provides convenient access to OpenGL, GLFW, and Dear ImGUI.
• BplusTools provides a variety of other game-development tools, like a scene-graph algorithm, ECS algorithm, and more.

You can, for example, integrate BplusCore into your own project to get all the game math, without having to use OpenGL, Dear ImGUI, or any of the other parts of the library.

Unit tests follow Julia convention: kept in the test folder, and centralized in test/runtests.jl. Each sub-package (BplusCore, BplusApp, and BplusTools) runs its own tests, and this package runs each of those in sequence. The test behavior is standardized by BplusCore, which provides the path to a test-running Julia file through BplusCore.TEST_RUNNER_PATH.

I never liked how the official Julia Test package does not let you assign messages to tests, so my tests are implemented with my own macros:

• @bp_check(condition, msg...) for normal checks
• @bp_check_throws(statement, msg...) to ensure something causes an error
• @bp_test_no_allocations(expr, expected_value, msg...) to test expressions that need to be completely static and type-stable (game math, scene graph operations, raycast math, etc).
  • A slightly longer version is offered in case you need to set up the test with some operations that may allocate: @bp_test_no_allocations_setup(setup_expr, test_expr, expected_value, msg...).

The three sub-packages are organized into a clear order. Each one has a set of modules within it.

---------  BplusCore  ----------
|                              |
|   Utilities         Math     |
|                              |
--------------------------------
              |
              |
              |
              |
--------------  BplusApp  ---------------
|                                       |
|                  GL                   |
|                /    \                 |
|               /      \                |
|              /        \               |
|           GUI          Input          |
|                                       |
-----------------------------------------
              |
              |
              |
              |
--------------  BplusTools  ---------------
|                                         |
|    ECS      Fields      SceneTree       |
|                                         |
-------------------------------------------

To import all B+ sub-modules into your project, you can use this snippet: using Bplus; @using_bplus.

Below is a quick overview of the modules. A thorough description is available here. You can also refer to the inline doc-strings, comments, and sample projects.

A dumping ground for all sorts of convenience functions and macros.

Detailed info can be found in this document, but here are the highlights:

• PRNG: An alternative to Julia's various AbstractRNG's which is more suitable for aesthetic, short-term use-cases such as procedural generation.
• @bp_check(condition, error_msg...), a run-time test that raises error() if the expression is false.
• @make_toggleable_asserts() sets up a "debug" vs "release" compile-time flag for your module.
• @bp_enum and @bp_bitflag: Much better alternatives to Julia's @enum and BitFlags' @bitflag.
• SerializedUnion{Union{...}}: Can serialize and deserialize a union of values, using the StructTypes package (which means it can be used in major IO packages like JSON3).
• RandIterator{TIdx, TRng}: Randomly and efficiently iterates through every value in some range 1:n.
• UpTo{N, T}: A type-stable, immutable, stack-allocated container for up to N values of type T. Implements AbstractVector{T}.

Typical game math stuff, but using Julia's full expressive power.

Detailed info can be found in this document, but here is a high-level overview:

• Vectors are represented with Vec{N, T}.
• Quaternions are Quaternion{F}.
• Matrices are @Mat{C, R, F}.
• Various functions such as lerp() and inv_lerp().
• Box{N, T} and Interval{T}, to represent contiguous spaces.
• Ray{N, F}, and a hierarchy of AbstractShape
• Noise functions:
  • perlin(pos)
• Contiguous{T} is an alias for a wide variety of storage for some sequence of T. For example, NTuple{10, Vec{3, Float32}} is both a Contiguous{Float32} and a Contiguous{Vec{3, Float32}}.

Wraps OpenGL constructs, and provides a centralized place for a graphics context and its accompanying window. This is the big central module of B+ along with Math.

Detailed information can be found in this document, but here is a high-level overview:

• Context represents the global OpenGL context, uniquely associated with a specific thread and GLFW window.
• Services are singletons attached to the Context. Some are built into B+, but you can also define your own using the @bp_service macro.
• AbstractResource is the type hierarchy for OpenGL objects, like Texture, Buffer, or Mesh.
• Clear the screen with clear_screen(). Draw something with render_mesh().

Detailed explanation available here.

Provides a greatly-simplified window into GLFW input, as a GL Context Service. Input bindings are defined in a data-driven way that is easily serialized through the StructTypes package.

Make sure to update this service every frame with service_Input_update(); this is already done for you if you build your game logic within @game_loop.

Helps you integrate B+ projects with the Dear ImGUI library, exposed in Julia through the CImGui.jl package.

Detailed information can be found in this document, but here is how you use it at a basic level:

1. Initialize the service with service_GUI_init().
2. Start the frame with service_GUI_start_frame().
3. After starting the frame, use CImGui as normal.
4. End the frame with service_GUI_end_frame()

If you use @game_loop, then this is all handled for you and you can use CImGui freely.

To send a texture (or texture View) to the GUI system, you must wrap it with gui_tex_handle(tex_or_view)

A very simple entity-component system that's easy to iterate on, loosely based on Unity3D's model. If you want a high-performance, use an external Julia ECS package instead such as Overseer.jl.

Detailed information can be found in this document, but here is a high-level overview:

• A World is a list of Entity (plus accelerated lookup structures)
• An Entity is a list of AbstractComponent
• You can add, remove, and query entities for components.
  • You can also query the components across an entire World.
• You can define component types with the @component macro. Components have a OOP structure to them; abstract parent components can add fields, "promises" (a.k.a. abstract functions) and "configurables" (a.k.a. virtual functions).
  • Refer to the @component doc-string for a very detailed explanation of the features and syntax.
• You can update an entire world with tick_world(world, delta_seconds::Float32).

Things that don't neatly fit into the other modules are documented here.

Provides a memory-layout-agnostic implementation of scene graph algorithms. Still a work-in-progress, but the architecture is pretty much done.

Read about this feature here.

A data representation of scalar or vector fields, i.e. functions of some Vec{N1, F1} to some Vec{N2, F2}. As well as a nifty little language for quickly specifying them.

This is the first of a series of planned modules that will help you play with procedural content generation. For example, you can use a Field to easily fill a texture with interesting noise.

I'm not going to write more about this module for now, but check out the unit tests for examples.
